Overview

This project focuses on the high-precision Scan-to-BIM modeling of a traditional multi-story residential block located at Dan Turèlls Gade. The objective was to create a comprehensive digital as-built record that captures the architectural rhythm and structural complexity of this classic urban development.

Project info

  • Architect : Ratan
  • Client : Dan Turells Gade
  • Terms : 1 Year
  • Project Type : Architecture
  • Strategy : Urban Residential Scan-to-BIM
  • Date : June 21, 2025

Design in Details

Project Overview

Project Scope: Detailed 3D modeling of a residential complex, covering exterior façades, roof geometry, and significant structural detailing.

Architectural Detail: The model accurately reflects the characteristic brickwork patterns, window placements, and traditional roof silhouettes typical of the local urban fabric.

Contextual Integration: Beyond the primary structure, the modeling includes street-level details and site context, providing a holistic view of the building’s placement within the neighborhood.

Key Technical Deliverables

As-Built BIM Model: A high-fidelity Revit model generated from raw point cloud data, ensuring millimeter accuracy for future renovations or maintenance.

Structural & Envelope Coordination: Precise mapping of the building’s thermal envelope and structural openings.

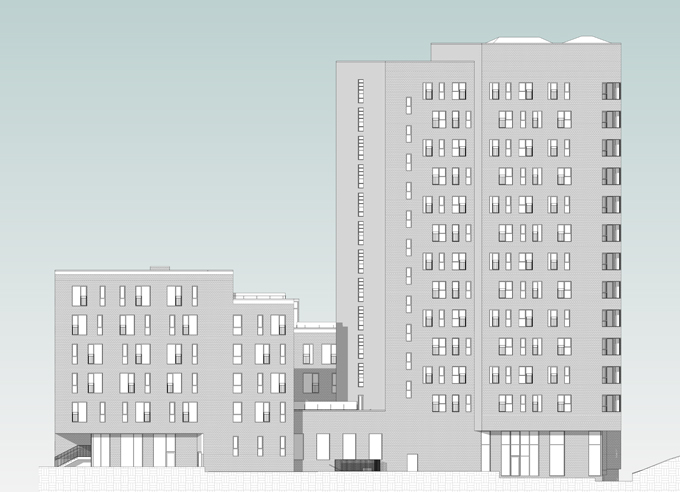

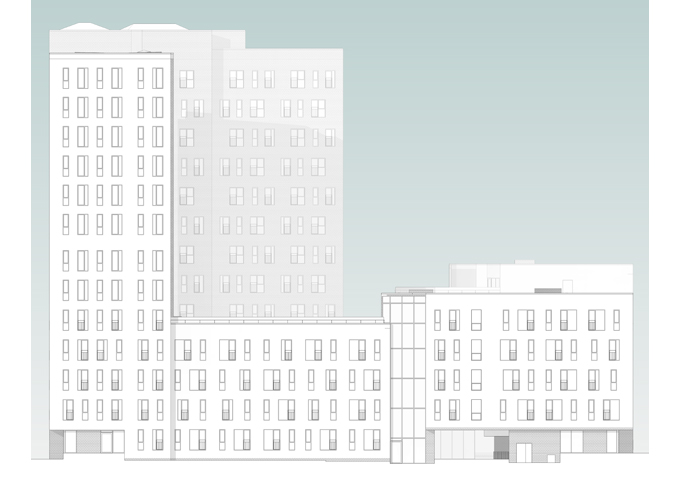

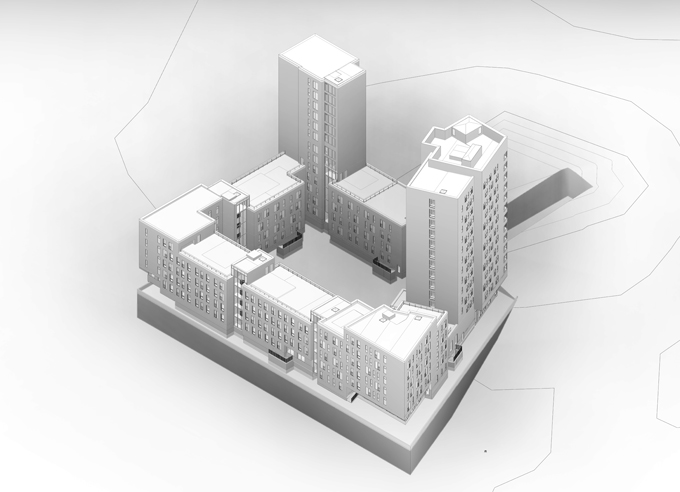

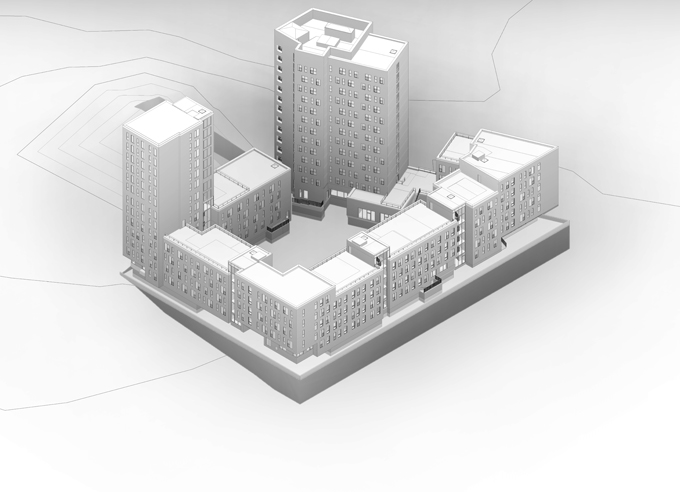

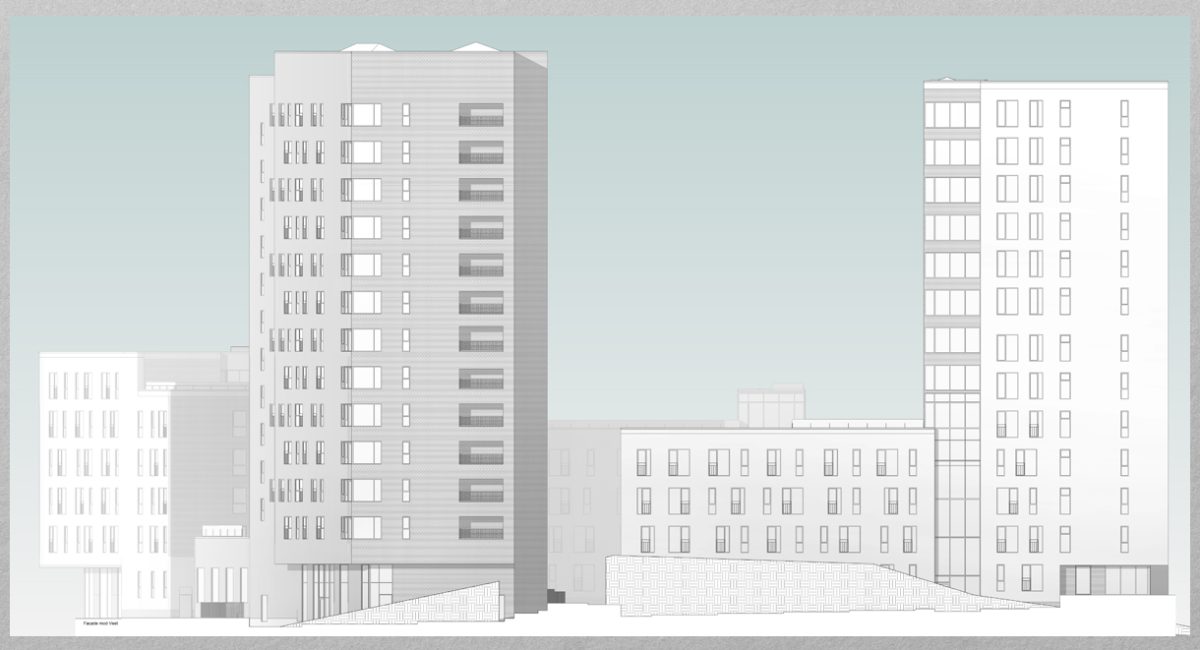

Façade Documentation: Detailed elevations and 3D axonometric views used to analyze material conditions and architectural alignment.

Project Specifications:
  • Location: Dan Turèlls Gade, 18-34
  • Project Type: Residential / Urban Infill.
  • Input Data: Terrestrial Laser Scan (Point Cloud).
  • Deliverables: Coordinated Revit (RVT) Model:
  • LOD: LOD 300 (Detailed Architectural).
  • Software: Autodesk Revit, Recap, Navisworks
