Design in Details
Project Overview
- Project Scope: Complete 3D BIM development of a multi-story residential facility, capturing intricate exterior façades, internal partitions, and structural coordination.
- Architectural Heritage: The modeling meticulously documents the building’s distinctive envelope, including repetitive window modules, recessed balconies, and specialized roof structures.
- Technical Workflow: Developed from high-precision laser scans, the model ensures that all 2D architectural deliverables—including elevations and sectional views—are derived from a single, accurate 3D source of truth.
Key Technical Deliverables
- Coordinated Revit Model: A high-fidelity as-built model representing the current physical state with millimeter precision.

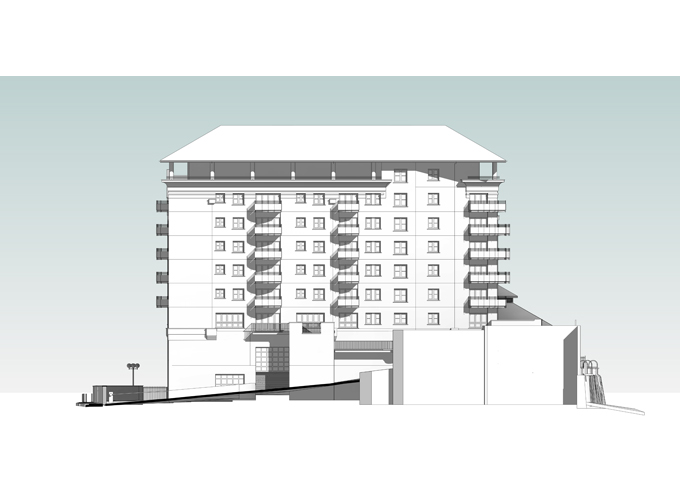

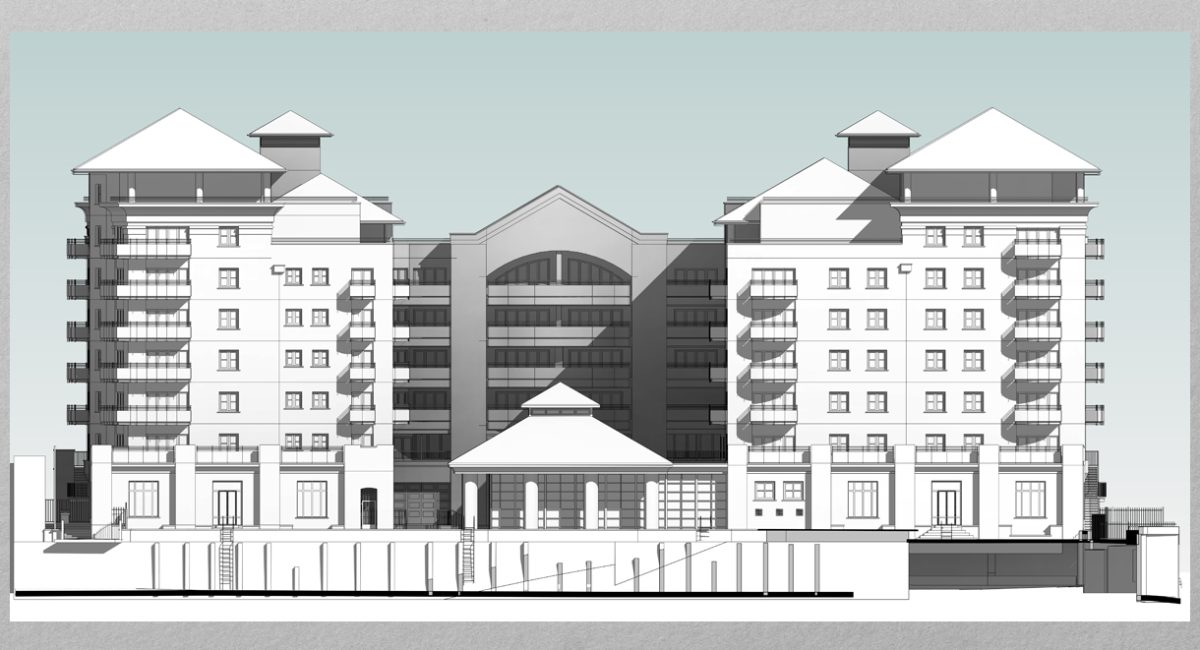

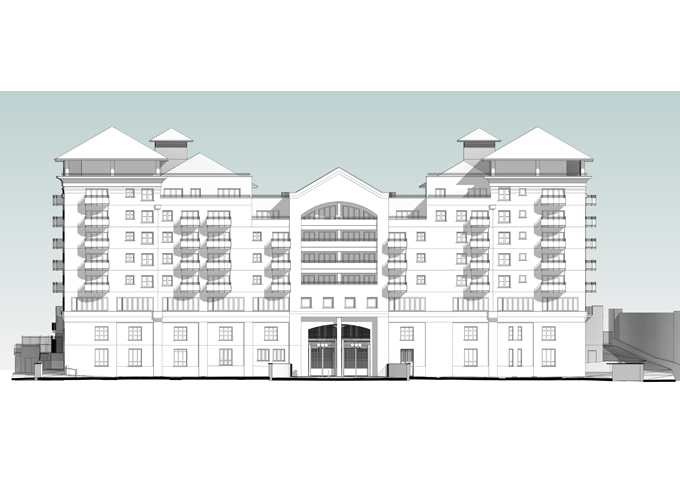

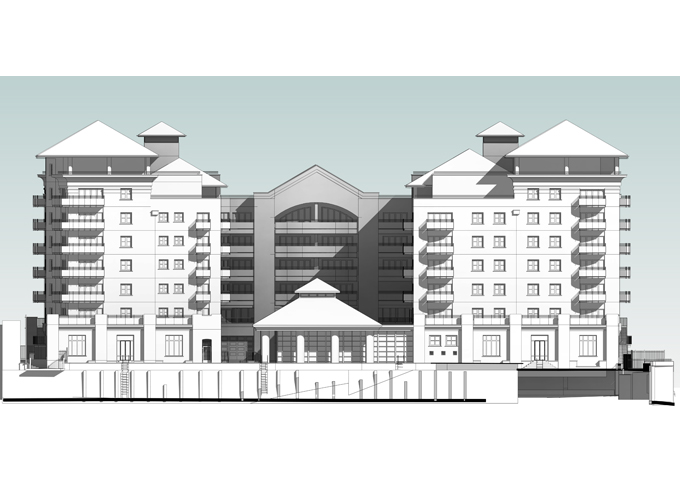

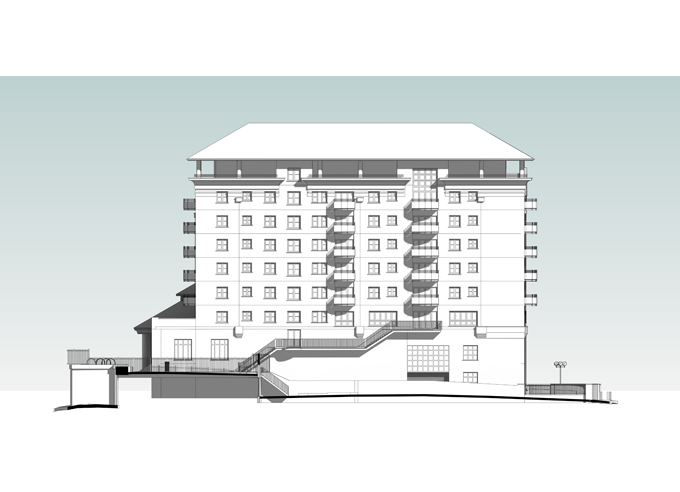

- Full Elevation Suite: Precise 2D elevations (North, South, East, West) generated to document material transitions and structural openings.

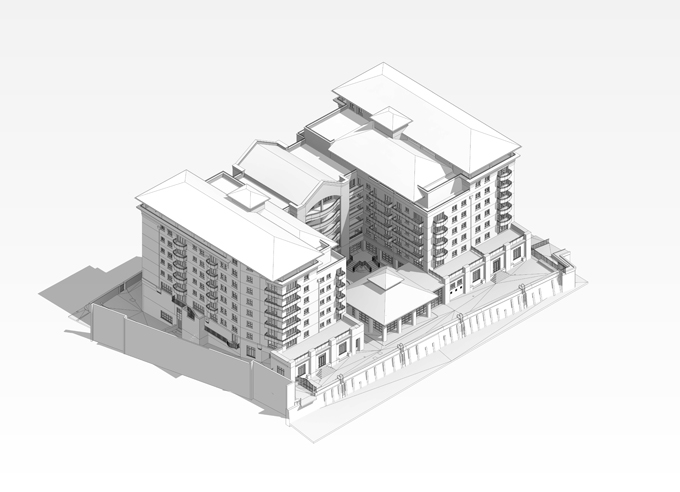

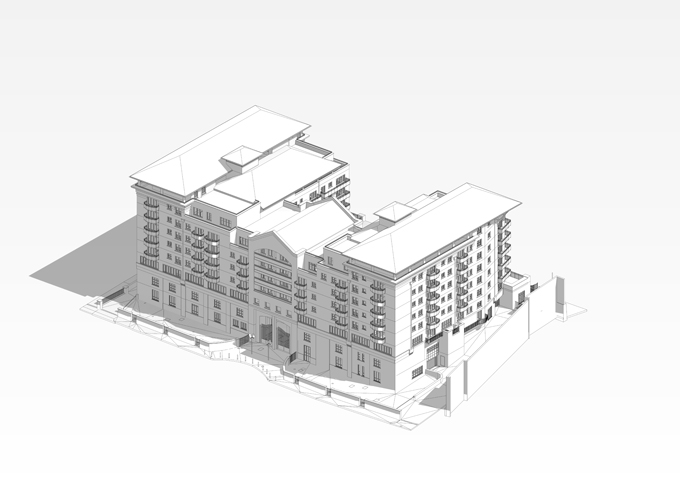

- Volumetric Analysis: Detailed axonometric views providing a clear understanding of the building’s massing and spatial organization.
- As-Built Documentation: Integration of legacy data with current point cloud captures to ensure 100% field accuracy for future renovations.
Project Specifications:
- Project Name: Foyer Soleil – Résidence Les Marronniers.
- Industry: Multi-Family Residential.
- Workflow: Point Cloud to Revit (Scan-to-BIM).
- Deliverables: Revit (RVT) Model, Detailed Elevation Sheets.
- LOD: LOD 300 (Architectural & Structural).
- Software: Autodesk Revit, Navisworks, Recap
